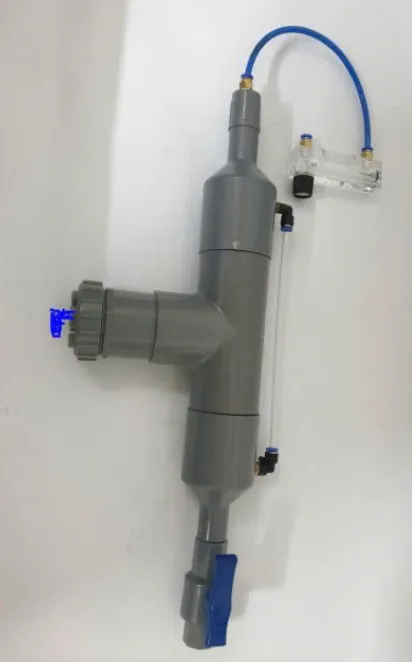

The Puroxi Precision Nano Injection System is designed for applications where controlled gas delivery and efficient inline treatment are essential. Utilizing advanced venturi and ejector principles, this system creates nano-sized bubbles through optimized pressure differentials and flow dynamics.
This approach allows for consistent bubble formation and exceptional gas retention, resulting in highly efficient oxygen or ozone transfer within the water stream. The system integrates seamlessly into existing piping infrastructure, making it ideal for recirculating systems, aquaculture operations, and industrial processes.
Its strength lies in its simplicity. With minimal moving parts and a highly reliable design, it provides consistent performance with low maintenance requirements. This makes it a practical and dependable solution for operators seeking efficiency without complexity.

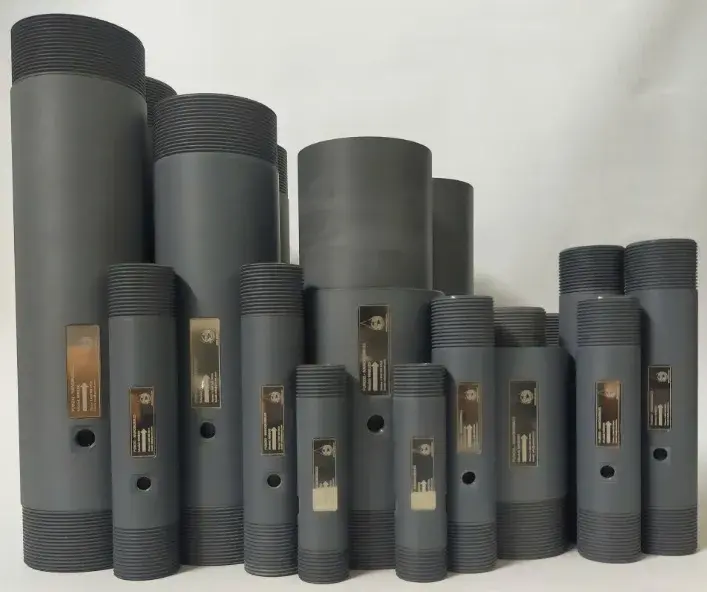

The Puroxi Nano Bubble Nozzle is a compact, high efficiency fine bubble generation device designed for water treatment, cleaning, agriculture, aquaculture, food processing, and environmental applications. Based on Japanese fine bubble research and industrial field deployment, the nozzle generates micro and nano scale bubbles directly within flowing water using a simple, straight through internal structure.
Unlike mechanical aerators or complex bubble generators, the Puroxi Nano Bubble Nozzle operates without moving parts. This allows reliable bubble generation even in muddy or particle laden water environments while maintaining low pressure loss and minimal maintenance requirements.
Fine bubbles are a general term for gas bubbles smaller than 100 micrometers in diameter. Bubbles ranging from approximately 1 to 100 micrometers are classified as microbubbles, while bubbles measuring several tens of nanometers to less than 1 micrometer are classified as ultra fine bubbles, commonly referred to as nanobubbles.
When fine bubbles are generated in water, they behave very differently from conventional millimeter scale bubbles. Bubbles smaller than approximately 60 micrometers gradually shrink due to surface tension effects and eventually collapse, dissolve, and disappear into the water. During this collapse process, the gas contained within the bubbles dissolves into the surrounding water, altering physical properties such as gas solubility behavior, surface tension, and electrical conductivity.
The Puroxi Nano Bubble Nozzle generates micro and nano scale fine bubbles using a static internal structure. It operates without moving parts and produces minimal pressure loss. The nozzle is suitable for clean water as well as muddy or particle containing water and requires less gas compared to conventional bubbling methods due to its wide gas–liquid contact area. Installation is simple, maintenance requirements are low, and the nozzle is compatible with oxygen, air, and other process gases.
When fine bubbles generated by the Puroxi Nano Bubble Nozzle collapse and dissolve, gas is efficiently transferred into the water. Dissolved oxygen levels may increase depending on the gas used, and the interaction between fine bubbles and water enhances contact with contaminants, surfaces, and microorganisms. Because of their small size, fine bubbles can penetrate areas that are unreachable by large bubbles.
Compared to conventional aeration methods, the wide gas–liquid contact area improves overall gas utilization efficiency and supports more uniform water treatment effects.
The Puroxi Nano Bubble Nozzle uses a simple straight flow internal structure that allows water and gas to interact efficiently as they pass through the nozzle. Because the internal passage is smooth and free of moving or rotating components, the nozzle resists clogging and can operate reliably even in turbid or contaminated water.
The design allows inline installation into existing piping systems and enables stable fine bubble generation with long service life. The simplicity of the structure ensures consistent performance while minimizing maintenance and operational complexity.
The Puroxi Nano Bubble Nozzle is used in factory wastewater treatment, water purification processes, and flotation or separation of suspended solids. Fine bubbles support aerobic biological processes, improve gas transfer efficiency, and help reduce anaerobic conditions that contribute to odor and water quality issues.
In cleaning applications, the nozzle enhances washing efficiency in piping systems and industrial equipment. Fine bubbles improve contact between water and surfaces, assisting in the removal of contaminants while reducing the need for chemicals and detergents.
In agricultural applications, the nozzle is used to improve irrigation water quality by increasing gas availability in water supplied to soil and root zones. It supports plant growth in greenhouse and open field systems by improving water conditions and reducing anaerobic stress in irrigation environments.

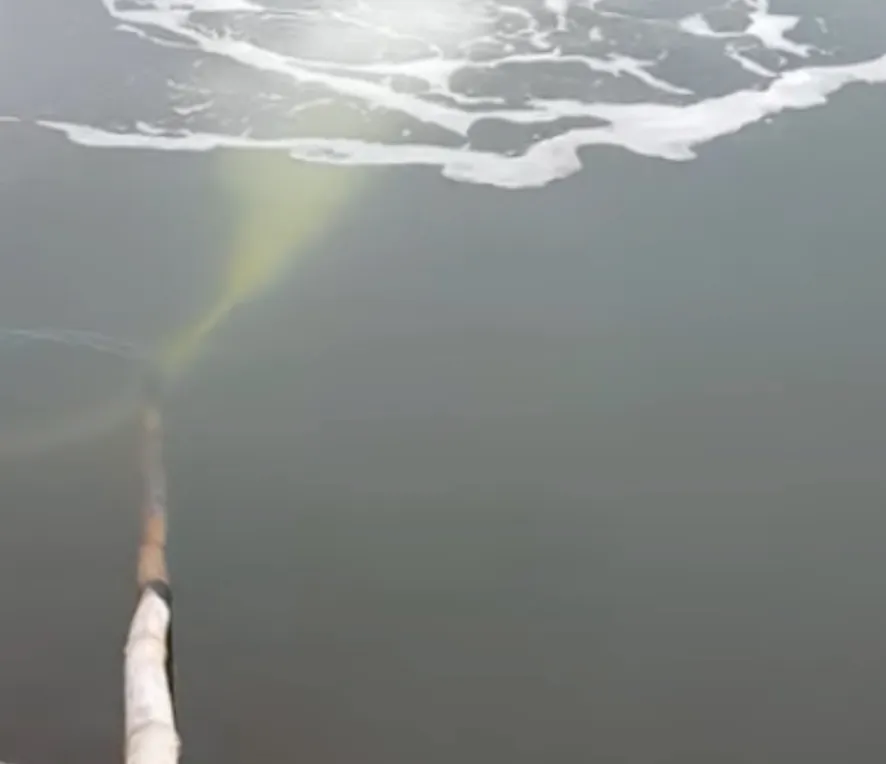

The Puroxi Nano Bubble Nozzle supports oxygen delivery in ponds, tanks, and aquaculture systems. Applications have demonstrated improved survival rates, enhanced growth, shortened culture cycles, and increased yield efficiency in environmentally friendly aquaculture operations.
In food related processes, fine bubbles are used for freshness preservation, oxidation suppression, and water quality control. The gentle action of fine bubbles supports hygienic processing conditions without mechanical stress.
The nozzle operates without mechanical drives, blowers, or rotating components. Its static design minimizes maintenance requirements and reduces operating costs compared to conventional aeration systems. The nozzle integrates easily into existing water systems and is suitable for continuous operation.
