Nano Bubble Water Body Generators

Water Purification System (nanobubble Generation System + Membrane Treatment System) Nanobubbles are generated in the raw water; Arsenic, fluorine, and heavy metals in the natural water are adsorbed on the surface of the bubbles, and then the contaminants are removed by membrane treatment. UF and RO membranes are used. Membrane-treated water becomes safe for drinking. After the nanobubbles are generated, they float in the water for an extended period and the generation of

Nanobubble does not require the addition of chemicals, making it possible to generate safe drinking water. If the turbidity of the raw water is high, adding a filtration device will solve the problem.

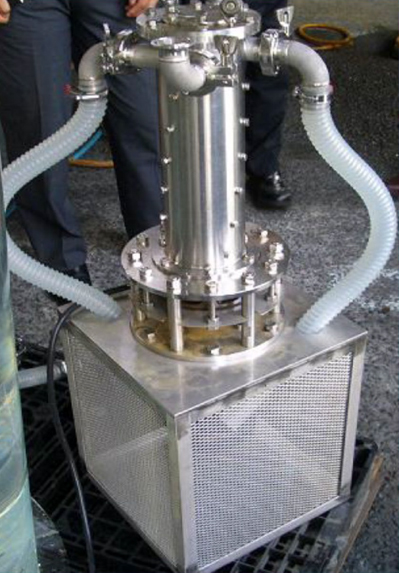

The Nanobubble Generator that goes directly in water.

The Nanobubble Generator stands as an exceptionally effective solution for addressing the issue of unsafe drinking water. This innovative generator helps purify water using nanobubbles less than 30 nanometers, enabling significant water quality enhancement. With its potential to create a sustainable future, this groundbreaking technology offers a promising path toward a healthier world.

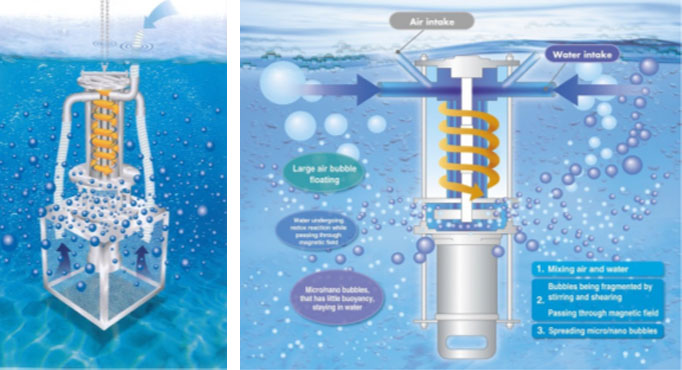

A nanobubble generator generates millions of nanobubbles over a wide area inside the body of water.

Permanent neodymium magnets are used to create a solid, stable magnetic field.

A high-speed rotating impeller and magnetic rotors generate nanobubbles in the size range of less than 30nm spread over a wide area

An exceptionally effective solution for addressing the issue of unsafe drinking water. This innovative Generator helps purify water using nanobubbles, less than 30 nanometers in size, enabling significant water quality enhancement.

Increased Dissolved Oxygen: Nanobubbles boast an outstanding 85% oxygen transfer rate. Normal DO is approx. 7 mg/l, whereas in nanobubble water, the DO is more than 30 mg/l.

Contaminant Removal: Nanobubbles attract and lift suspended particles, such as algae, sludge, etc. By promoting the growth of beneficial microorganisms, nanobubbles aid in removing excess phosphorus and nitrogen, preventing the dreaded eutrophication.

Bacteria Control: Due to a highly oxygenated environment, Nanobubbles keep harmful bacteria like E. coli in check and promote aerobic bacterial growth. Metal Removal: Nanobubbles facilitate the effective removal of heavy metal contamination from water through precipitation and adsorption processes.

Healthy pH Levels: Nanobubbles play a pivotal role in water pH regulation by promoting gas dissolution and helping stabilize and maintain optimal pH levels.

Odour Elimination: Nanobubble technology effectively removes smelly compounds  such as hydrogen disulphide and ammonia, achieving odour elimination through  targeted gas oxidation and dissolution.

Oil Water Separation: Before the system was used, it was sent to an industrial waste disposal contractor. Using Nano separated the water and oil so only the oil was sent to waste disposal. This made sending the treated water to a wastewater treatment facility possible.

Some Past Use Results

Spray painting of vehicles car manufacturers: (placed in Sludge Pool with a skimmer)
  • Chemical cost decreased
  • Higher removal of accumulated pain solids (oxidation)
  • Increased flotation of paint solids in the pool (pressure flotation)
  • Decrease in the number of anaerobic bacteria (increased DO)
  • Less Maintenance or pool cleaning
  • Less odour
  • There is no sludge in the pipes (really good for cooling towers)
Creek Water Treatment
  • Increased DO by 78%
  • Decreased BOD by 44%
  • Decreased TOC by 78%
  • Reduced Total Nitrogen (TN) 66%

The Water Channel at the Park

20 June 06 24 August 06 Result6
BOD Average 3.025 (mg/θ 2.875 (mg/θ 5% Down
COD Average 6.95 (mg/θ 4.975 (mg/θ 28% Down
SS Average 7.1 (mg/θ 7.3 (mg/θ 3% UP
T-N Average 1.09325 (mg/θ 0.61175 (mg/θ 44% Down
T-P Average 0.20275 (mg/θ 0.11725 mg/θ 42% Down
Chlorphyll-a 13.2 (mg/l) 17.775 (mm) 35% UP

The objective was to reduce the hydrogen sulphide smell.

The water was originally from an industrial waste facility.

The Hydrogen Sulfide was reduced from 600 PPM to almost 0 PPM after 2 hours of operation.

Cesium Removal: (KBq the becquerel is the unit of radioactivity in the International System of Units.)

  • Before decontaminating contaminated soil, the radiation dose was 3.81 KBq/kg
  • After decontaminating the soil, the radiation dose was 0.212 KBq/kg
  • This amounted to a 98.4% decrease in radiation dose.

All models are supplied with a control unit.
For Canada, USA units are supplied with UL and CSA-certified control units.
For European Countries- Units are supplied with CE-marked control units.

Unit Specification: (Water Depth Required 1m (40 ft to 400 ft)

Unit #1- Smaller Unit

  • Single Phase 200V and 100V (0.40kw) (0.54HP)- Frequency 60 Hz
  • Comes with the plug of the country
  • Will Treat Water Body- Width 10m (32.8 ft) X Depth 5m (16.4 ft) X Height 25m (82 ft)
  • Size- W 295mm (11.6 in) X Depth 210mm (8.2 in) X Height 500mm (19.7 in) and Weight 22 kg (48 lbs)
  • Discharge Rate- 70 l/min (15.4 gpm) (18 cfm)
  • Air Intake- 7.0 l/min (1.55 gpm) (1.8 cfm)

Unit #2 – Larger Unit

  • Larger Unit
  • Three Phase 200V and 100V (0.40kw) (0.54HP) - Frequency 50 Hz
  • It comes with the plug of the country
  • Will Treat Water Body- 150 m (492 ft) in radius with a 5 m (16.4 ft) in depth
  • Size- W 310mm (12 in) X Depth 310mm (12 in) X Height 971mm (38 in) and Weight 70 kg (154 lbs)
  • Discharge Rate- 280 l/min (61.6 gpm) (74 cfm)
  • Air Intake- 14.0 l/min (3.08 gpm) (3.7 cfm)
